Structural Mechanics Solutions Products

ANSYS Mechanical ANSYS Mechanical offers a comprehensive product solution for structural linear/nonlinear and dynamics analysis. The product offers a complete set of elements behavior, material models and equation solvers for a wide range of engineering problems. In addition, ANSYS Mechanical offers thermal analysis and coupled-physics capabilities involving acoustic, piezoelectric, thermal-structural and thermal-electric analysis      ANSYS Mechanical allows you to efficiently compute large as here in a detailed model of a complete combine Courtesy CLAAS Drogue parachute system analysis with inset submodel of the critical area using nonlinear material properties Courtesy CTC

ANSYS Structural

ANSYS Structural software addresses the unique concerns of pure structural simulations without the need for a lot of extra tools. The product offers all the power of nonlinear structural capabilities — as well as all linear capabilities — in order to deliver the highest-quality, most reliable structural simulation results available.

Pre-tensioning analysis of a bolt-bracket assembly involving nonlinear materials, and contact with friction	Flexible transient dynamics analysis of a suspension system from a Dale Earnhardt race car Courtesy DEI

ANSYS Professional

ANSYS Professional software offers a first step into advanced linear dynamics and the nonlinear capabilities of ANSYS structural mechanics. ANSYS Professional comes in two versions: ANSYS Professional NLT with linear structural and dynamics capability and nonlinear thermal capability, and ANSYS Professional NLS with linear structural dynamics and thermal capability as well as a basic structural nonlinear capability.

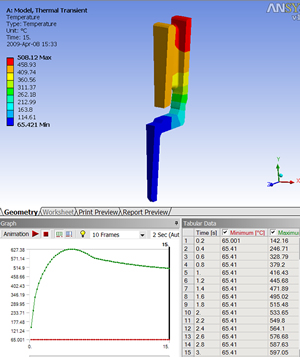

ANSYS Professional allows an easy way to perform a thermal transient
stress analysis on a section of an automotive rotor

ANSYS DesignSpace

ANSYS DesignSpace is an easy-to-use simulation software package that gives designers tools to conceptualize, design and validate all their ideas right on the desktop. ANSYS DesignSpace software, a subset of the ANSYS Professional product, enables users to easily perform real-world, static structural and thermal, dynamic, weight optimization, vibration mode, and safety factor simulations on all designs without the need for advanced analysis knowledge.

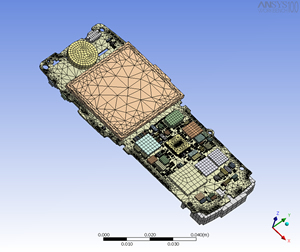

Auto contact detections makes it easy to work with large assembly models	Design of the central structure of a hydraulically balanced crane Courtesy SERAM Group
